Tip: Use Design Checker to find dangling dimensions

So you’ve updated your drawing after making significant changes to the model, and now you have a number detached or dangling dimensions that were manually placed which need to be deleted. If there’s one or two, it’s easy to select them and delete them, but what if there are ten, or a hundred? Unfortunately there is no selection filter for picking only dangling dimensions. However, if you have access to Design Checker (SOLIDWORKS Professional and higher), you can build a check for dangling dimensions and annotations, then select any it finds, and delete them in one action. Here’s how.

In the drawing, go to Tools > Design Checker > Build Checks. This will open the SOLIDWORKS Design Checker builder.

Dangling_Dims_1

Choose the option to “Create a New Standards File” from the welcome page.

Dangling_Dims_2

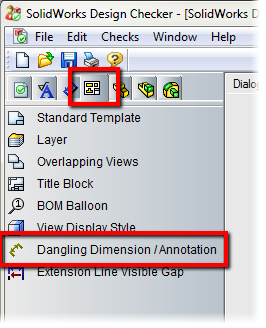

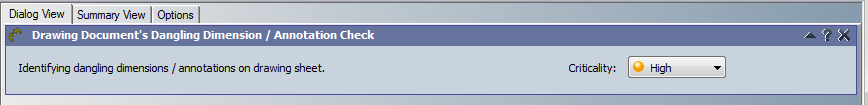

Click the “Drawing Documents Check” tab, and then click the “Dangling Dimension/Annotation” requirement. You can set the criticality level if desired.

Dangling_Dims_3Dangling_Dims_4

Save the new Standards file, and then close Design Checker.

In the drawing, go to Tools > Design Checker > Check Active Document. In the “Design Checker Task Pane“, un-check the pre-defined standards, and then click the green cross to add the newly created one.

Dangling_Dims_6

Browse to the new standards file and select it. Once added to the list of standard files, click the “Check Document” button.

Dangling_Dims_7

Once the check is performed, the dangling dimensions are identified in the Task Pane and selecting the top level group selects them in the drawings. Now it’s a simple Edit > Delete to remove them.

Dangling_Dims_8

Hope you find this tip useful. More tips next time from the SolidApps team.
