Topology Study: Ideal Geometry for Your Design Requirements

Use weight, strength, factor of safety, and frequency constraints to drive optimized topology in your design.

Automate Your Design Topology Decisions

Whether optimizing existing designs to cut weight, or quickly gaining insight on new projects, Topology Study offers designers many new options to speed the development of highly optimized products.  Many designs have constraints that go beyond stiffness and weight. Design failure from frequency response is a very common issue.

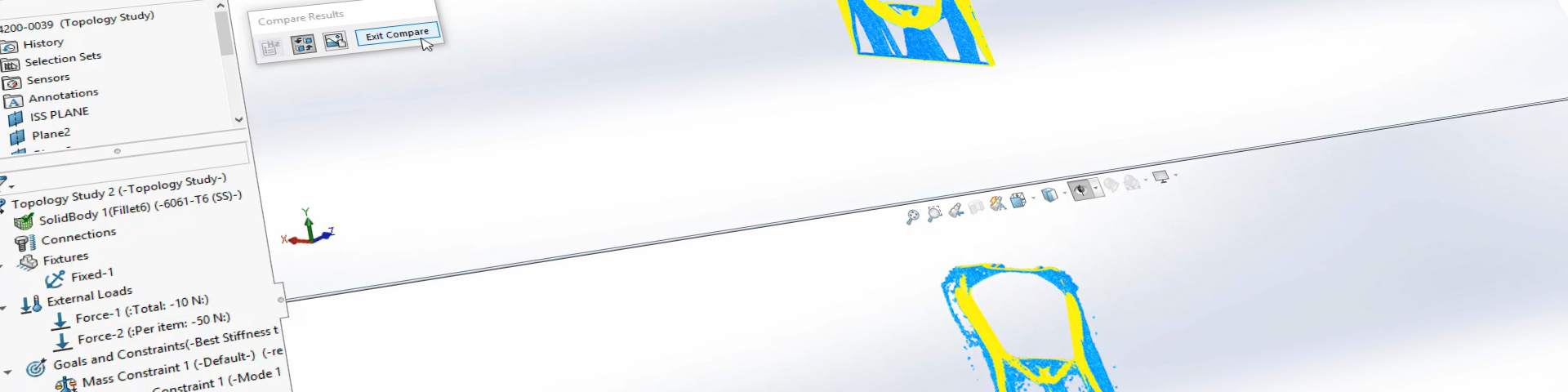

Topology Study in SOLIDWORKS Simulation 2019 includes a frequency constraint to insure the resulting topology will meet your design’s vibration requirements.  Users can specify a single or multiple mode shapes and have options for frequency ranges to stay within or exclude.  Additionally, users can apply a stress or factor of safety constraint to insure the resulting topology will meet this design goal. Using the compare results tool, we can quickly visualize the topology differences from adding the 150 hertz minimum frequency constrain.

Finally, now smoothed mesh results can be directly exported to a solid mesh body for easier use in downstream processes.  With Topology Study, finding the ideal shape to meet your design requirements is easier and faster than ever, speeding the design to manufacture process.
